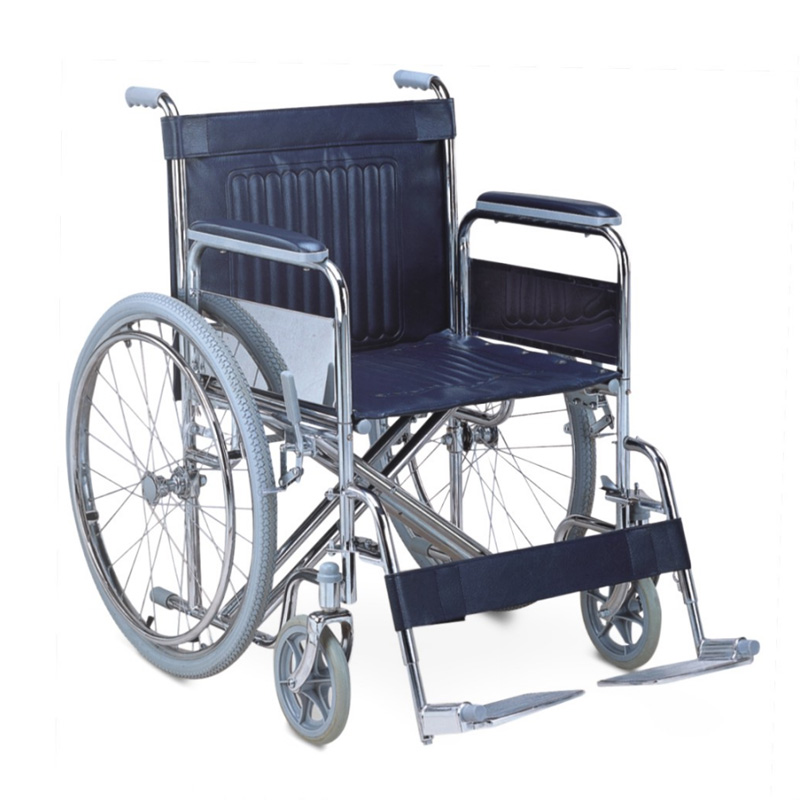

Hand Operated Wheelchair
Model FS975-51
1.Steel frame chrome plating on the surface, beautiful and durable.
2.24-inch air wheel, with handwheel (used when the hand is directly driving the wheelchair).
3. 8-inch (200mm) PVC +PP integrated solid wheel, configured with high-strength engineering plastic wheels, non-inflatable solid tires
4.Brake: with steel stationary brake, safe and reliable.
5.Seat cushion: seat cushion material is human leather, the middle needs to use canvas interlayer, t
6.Handrails: detachable handrails, with high-quality leather handrail pads and metal protective panels.
7.Foot rest: metal foot pedal, height adjustable.
8.Handwheel: Steel pipe material (for direct drive rear wheel)
Chromed Steel Frame, 20" Seat Width, Detachable Armrest,
Detachable Footrest, Solid Castor, Pneumatic Rear Wheel.
Name | Parameters |
Total length | 1050mm |
Total width | 730mm |
Total high | 910mm |
Fold width | 270 mm |
Seat width | 510mm |
Seat depth | 450mm |
Seat height off the ground | 500mm |
Armrest height | 260mm |
Distance between handrails | 505mm |
Foot pedal height off the ground | 130 mm |
Backrest height | 400mm |
Front wheel diameter | 200mm |
Rear wheel diameter | 620mm |
Maximum load | 100kg |
Net weight | 18.4kg |
